CNC transformers and power supplies.
12 V power supplies.
Power supplies for stepper motors.
24 V power supplies.
36 V power supplies.
48 V power supplies
60 V power supplies.
120/240 V power supplies
Regulated power supplies.
Do it yourself power supply.
Stepper motor power supply.
12 V power supplies.
Power supplies for stepper motors.
24 V power supplies.
36 V power supplies.
48 V power supplies
60 V power supplies.
120/240 V power supplies
Regulated power supplies.
Do it yourself power supply.
Stepper motor power supply.
Use with Nema34 motors.
120V / 240V AC input.
48Vac c.t. @ 13A, 24Vac @ 26A - AC Output
Good for up to six 1200 oz-in stepper motors.
120V / 240V AC input.
48Vac c.t. @ 13A, 24Vac @ 26A - AC Output
Good for up to six 1200 oz-in stepper motors.
Hammond Toroid Transformer 1182T24
Price $195.00
Use with Nema34 motors.
120V / 240V AC input
48Vac c.t. @ 10A, 24Vac @ 20A - Output
Good for up to four 1200 oz-in stepper motors.
120V / 240V AC input
48Vac c.t. @ 10A, 24Vac @ 20A - Output
Good for up to four 1200 oz-in stepper motors.
Hammond Toroid Transformer 1182S24
Out of stock
Use with Nema 23 motors.
120V / 240 Vac input
30Vac c.t. @ 10A, 15Vac @ 20 A Output
Good for up to four 396 oz-in stepper motors.
120V / 240 Vac input
30Vac c.t. @ 10A, 15Vac @ 20 A Output
Good for up to four 396 oz-in stepper motors.
Hammond Toroid Transformer 1182S15
Out of stock

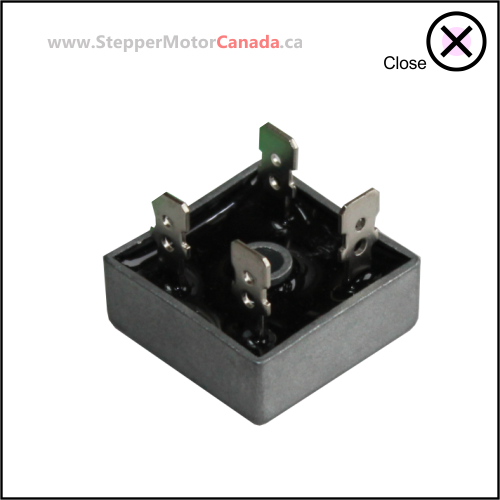

Used to turn Alternating Current to Direct Current.
Input up to 700 Vac / 35 Amps.
Screw mounting, 4 pin connection.
28mm X 28mm X 22mm.
Input up to 700 Vac / 35 Amps.
Screw mounting, 4 pin connection.
28mm X 28mm X 22mm.
Bridge Rectifier - KBPC3510
Price $10.00
120/240 Vac, 50/60 Hz input.
12 Vac @ 8 A output.
24 Vac @ 4 A output.
12 Vac @ 8 A output.
24 Vac @ 4 A output.
Price $45.00
Marcus Transformer MO100A

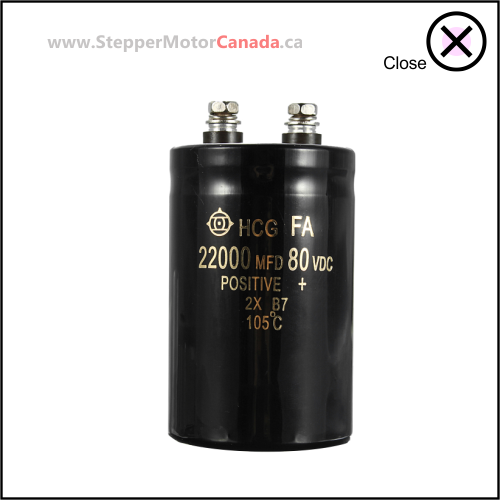

Hitachi.
Electrolytic Screw Capacitor.
80mm X 50mm.
Screw top, 105oC.
Electrolytic Screw Capacitor.
80mm X 50mm.
Screw top, 105oC.
80VDC 22,000MFD Capacitor
Price $25.00

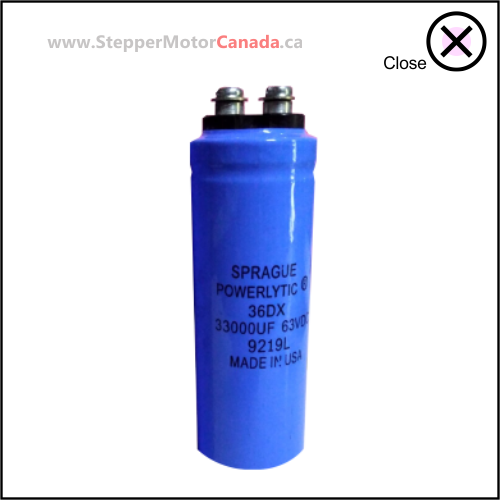

Sprague.
Electrolytic Screw Capacitor.
35mm X 120mm.
Screw top, 105oC.
Electrolytic Screw Capacitor.
35mm X 120mm.
Screw top, 105oC.
63VDC 33,000uf Capacitor
Price $30.00
Red Mushroom 40mm head.
Cut out hole size 22mm.
600 Vac 10 Amps .
Normally open, normally closed
Cut out hole size 22mm.
600 Vac 10 Amps .
Normally open, normally closed
Price $25.00
Emergency Switch

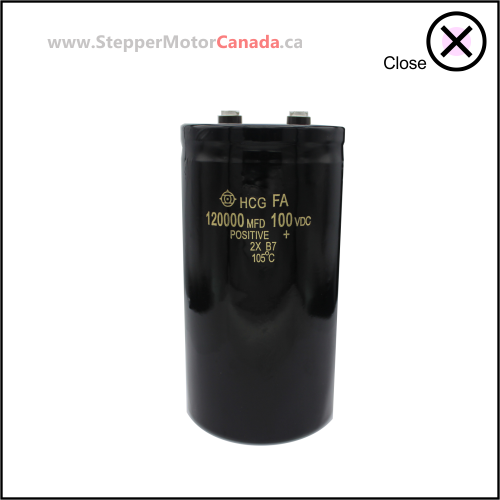

Hitachi.
Electrolytic Screw Capacitor. 145mm X 78mm.
Screw top, 105oC.
Electrolytic Screw Capacitor. 145mm X 78mm.
Screw top, 105oC.
100VDC 120,000MFD Capacitor
Out of stock

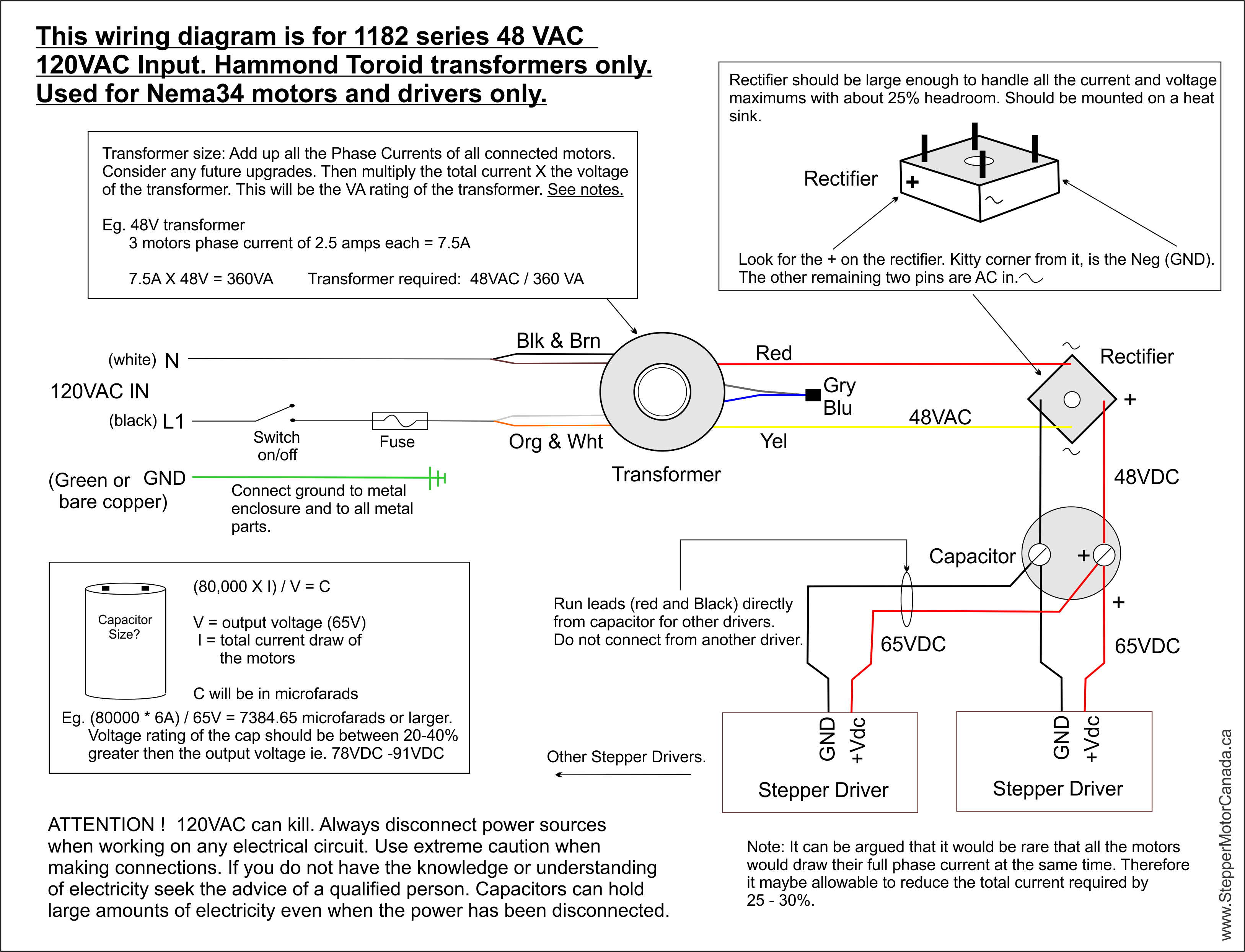

Connection diagram on how to build an unregulated power supply with the above parts.
Unregulated Power Supply PDF
Nema 34 Hammond
Nema 23 Hammond
Use with Nema 34 and large Nema 23 motors.
120V / 240V AC input.
48V - DC output 12.0 amps.
247.0 x 127.0 x 63.5 mm
120V / 240V AC input.
48V - DC output 12.0 amps.
247.0 x 127.0 x 63.5 mm
Mean Well 48V Power Supply
Price $150.00
Mean Well 36V Power Supply
Price $130.00
Panel mount chassis fuse holder.
Use with 6x30mm glass fuses.
15A 125V, fuses not included.
Use with 6x30mm glass fuses.
15A 125V, fuses not included.
Fuse Holder
Price $5.00
Other power supplies may be available.
Ask about our surplus stock of good transformers.
Ask about our surplus stock of good transformers.
120/240 Vac, 50/60 Hz input.
16 Vac @ 15 A output.
32 Vac @ 7.5 A output.
16 Vac @ 15 A output.
32 Vac @ 7.5 A output.
Price $95.00
Marcus Transformer MO250X
Nema 23 Marcus
Use with Nema34 motors.
120V AC input.
48 VAC @ 12A, AC Output
Good for up to five 1200 oz-in stepper motors.
120V AC input.
48 VAC @ 12A, AC Output
Good for up to five 1200 oz-in stepper motors.
Grewin Toroid Transformer 575VA
Not Available
Great power supply for use with fans, relays, breakout boards and with Nema17 motors.
3 onboard voltages.
5V, 12V, 24V - DC output 6, 1, 2.0 amps.
159.0 x 97.0 x 38.0 mm.
3 onboard voltages.
5V, 12V, 24V - DC output 6, 1, 2.0 amps.
159.0 x 97.0 x 38.0 mm.
Mean Well Multi Voltage Power Supply
Price $50.00
Use with Nema 23 motors.
120V / 240V AC input.
36V - DC output 9.70 amps.
225.0 x 124.0 x 50.0 mm
120V / 240V AC input.
36V - DC output 9.70 amps.
225.0 x 124.0 x 50.0 mm
